P9S By SGS Dental®

Technical Features

Material: Titanium Alloy
Level: Tissue Level
Connection Type: Custom
Connection Shape: One piece Abutment
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: No

PDF Catalog

Identify a dental implant

Learn more

Platforms

default

Dimensions

Length \ Diameter	2.40mm	3.00mm	3.20mm
10.00mm	✔	✔	✔
11.50mm	✔	✔	✔
13.00mm	✔	✔	✔
16.00mm	✔	✔	✔

Description

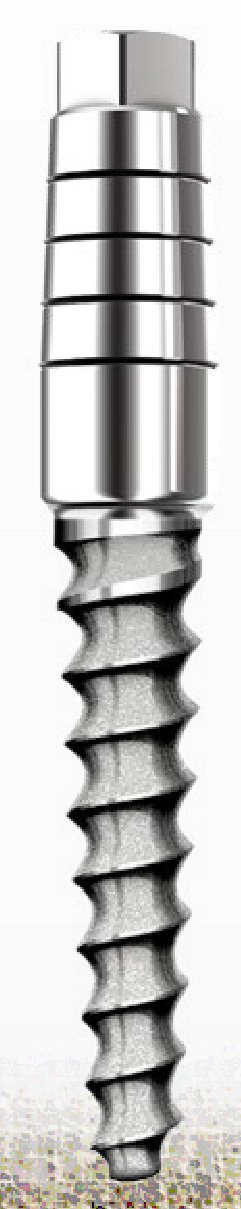

P9S is a narrow dental implant produced by SGS Dental. It's a tissue level implant. Its connection is custom, with a one piece abutment shape with none. Its body is tapered with v shaped threads. Its head is straight. Its apex has a flat shape, doesn't have a hole, and doesn't have grooves. It is made of titanium alloy. It is available in 3 different diameters and 4 different lengths. For more details, please refer to the catalog. SGS Dental also offers 12 other implant models.
Specs:
Dimm 0 2.4 mm 3.0 mm 3.2 mm - - - L:8 - - 10 mm 10 mm 10 mm P:1.5 : L 11.5 mm 11.5 mm 11.5 mm 13 mm 13 mm 13 mm D2 D1 16 mm 16 mm 16 mm D2 mm 1.8 mm 2.0 mm 2.2 mm
