Luna S By ShinHung®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Manufacturer Page

Identify a dental implant

Learn more

Screwdriver

Dimensions

Length \ Diameter	3.50mm	4.00mm	4.50mm	5.00mm	6.00mm
0.12mm		NSIR4011S
7.00mm		NSIR4007S	NSIR4507S	NSIR5007S	SIR6007S
8.50mm	NSIN3508S	NSIR4008S	NSIR4508S	NSIR5008S	SIR6008S
10.00mm	NSIN3510S	NSIR4010S	NSIR4510S	NSIR5010S	SIR6010S
11.50mm	NSIN3511S		NSIR4511S	NSIR5011S	SIR6011S
13.00mm	NSIN3513S	NSIR4013S	NSIR4513S	NSIR5013S	SIR6013S
15.00mm	NSIN3515S	NSIR4015S	NSIR4515S	NSIR5015S

Description

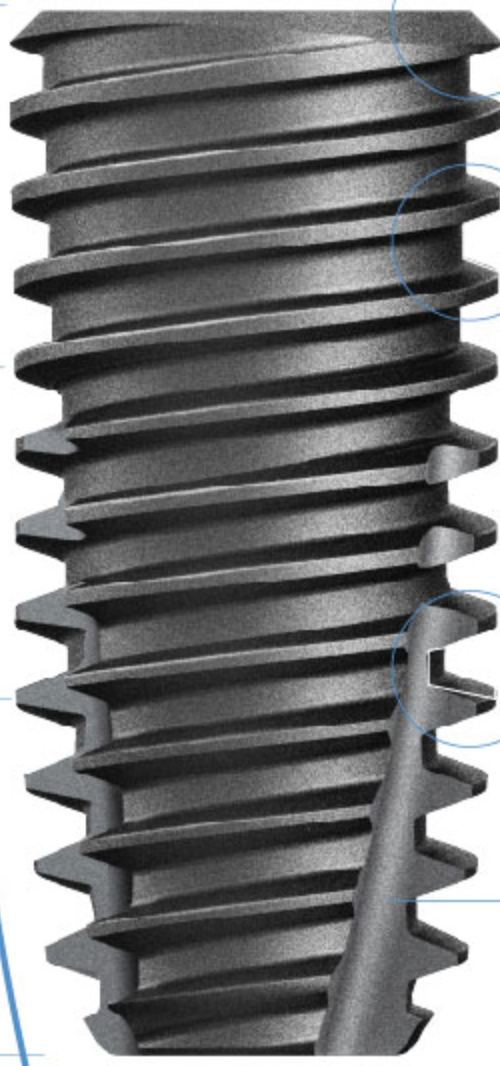

Luna S is a standard dental implant produced by ShinHung. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its head is straight. Its body is tapered with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 5 different diameters and 7 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. ShinHung also offers 7 other implant models.
