RFF By SNUCone®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: No

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Screwdriver

Dimensions

Length \ Diameter	4.00mm	4.50mm
8.50mm	RFF-40085	RFF-45085
10.00mm	RFF-4010	RFF-4510
11.50mm	RFF-40115	RFF-45115
13.00mm	RFF-4013	RFF-4513

Compatible Components

Components compatible with SNUCone® RFF®

Browse compatible components

Description

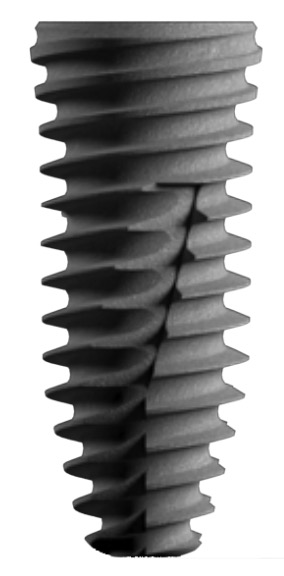

RFF is a standard dental implant produced by SNUCone. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its body is tapered with v shaped threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and doesn't have grooves. This implant model is fairly recent. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. SNUCone also offers 7 other implant models.

Components compatible with SNUCone® RFF®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
