Internal Taper Tapered By Southern Implants®
Technical Features
Identify a dental implant
Learn moreConnection
Internal
Octagon
Screwdrivers
Platforms
- 4.8mm
- 6.5mm
Dimensions
| Length \ Diameter | 4.00mm | 5.00mm | 6.00mm |
|---|---|---|---|
| 8.00mm | ITT408(P:4.80mm) |
ITT6-508(P:6.50mm)
ITT508(P:4.80mm) |
ITT608(P:4.80mm) |
| 10.00mm | ITT410(P:4.80mm) |
ITT6-510(P:6.50mm)
ITT510(P:4.80mm) |
ITT610(P:4.80mm) |
| 12.00mm | ITT412(P:4.80mm) |
ITT6-512(P:6.50mm)
ITT512(P:4.80mm) |
ITT612(P:4.80mm) |
| 14.00mm | ITT414(P:4.80mm) | ITT514(P:4.80mm) |
Compatible Components
Components compatible with Southern Implants® Internal Taper Tapered®
Description

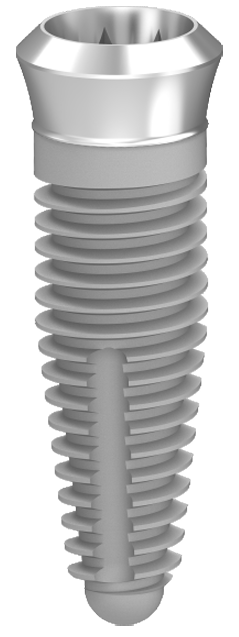

Internal Taper Tapered is a standard dental implant produced by Southern Implants. Its connection is internal, with a octagon shape with morse taper. It's a tissue level implant. Its body is tapered with v shaped threads. Its head is flared. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of cp titanium. It is available in 3 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Southern Implants also offers 60 other implant models.
Specs:
ITT Ø5.0 Implants ! Diameter 5.0mm Implants with Diameter 4.8mm Prosthetics Cover Screws Healing Abutments TTO TT Unmounted Implants 1/2/3/4.5 ITT508. Length = 8mm ITT510. Length = 10mm 04.8 ITT512. Length = 12mm ITT514. Length = 14mm 1.8 O Mounted Implants Packaged with TT1 Healing Abutment L ITT508 f. Length = 8mm ITT510 f. Length = 10mm ITT512 f. Length = 12mm ITT514 f. Length = 14mm 4 Ø5.0 ITT6 Ø5.0 Implants ! Diameter 5.0mm Implants with Diameter 6.5mm Prosthetics Cover Screw Healing Abutments TT6-0 TT6 Unmounted Implants 1/2/3/5/6 06.5 ITT6-508. Length = 8mm ITT6-510. Length = 10mm 1.8 ITT6-512. Length = 12mm Mounted Implants Packaged with TT6-1 Healing Abutment L ITT6-508 f. Length = 8mm ITT6-510 f. Length = 10mm ITT6-512 f. Length = 12mm Ø5.0 ITT Ø6.0 Implants Diameter 6.0mm Implants with Diameter 6.5mm Prosthetics Cover Screw Healing Abutments TT6-0 TT6 Unmounted Implants 1/2/3/5/6 06.5 ITT608. Length = 8mm ITT610. Length = 10mm 1.8 ITT612. Length = 12mm Mounted Implants Pack…
Components compatible with Southern Implants® Internal Taper Tapered®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
Catalogs
Suggest an Improvement

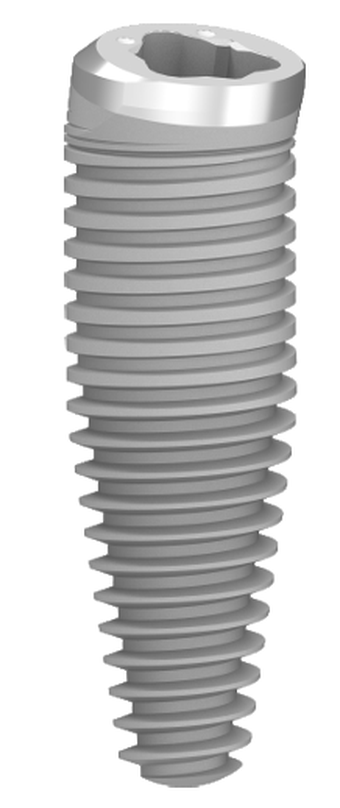

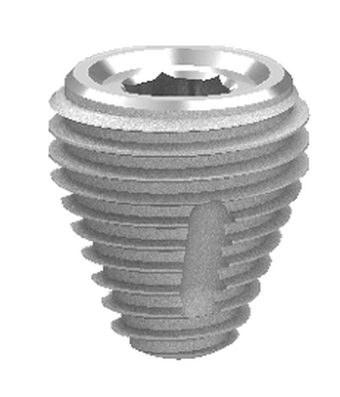

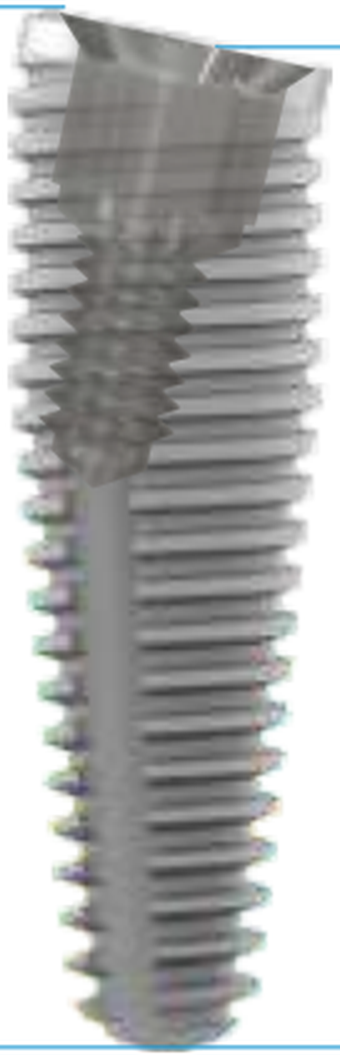

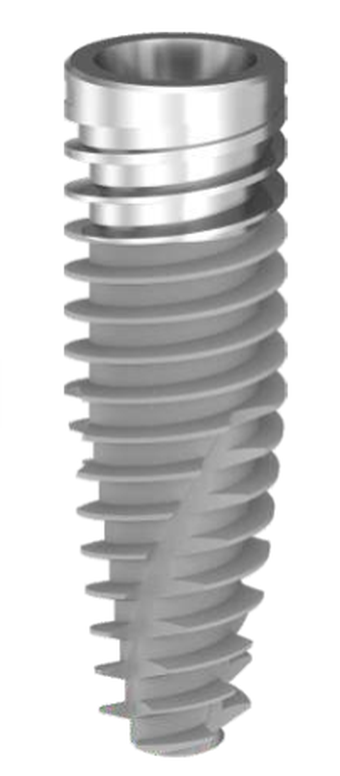

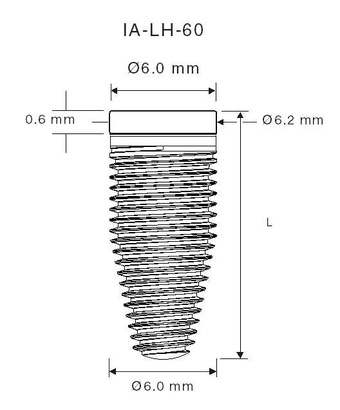

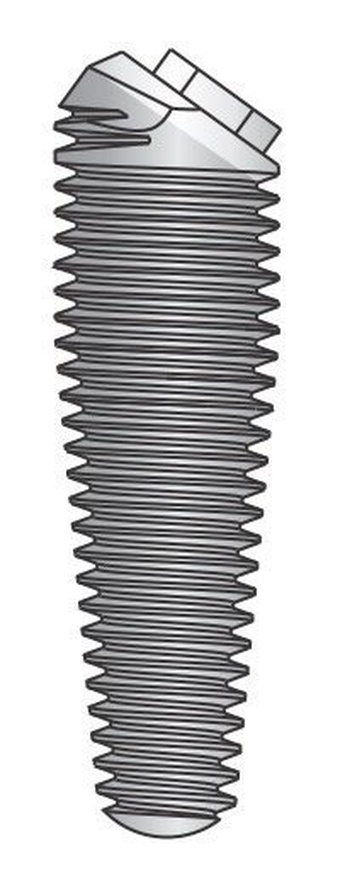

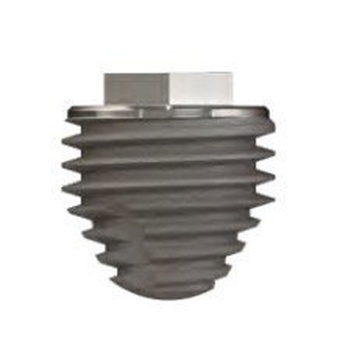

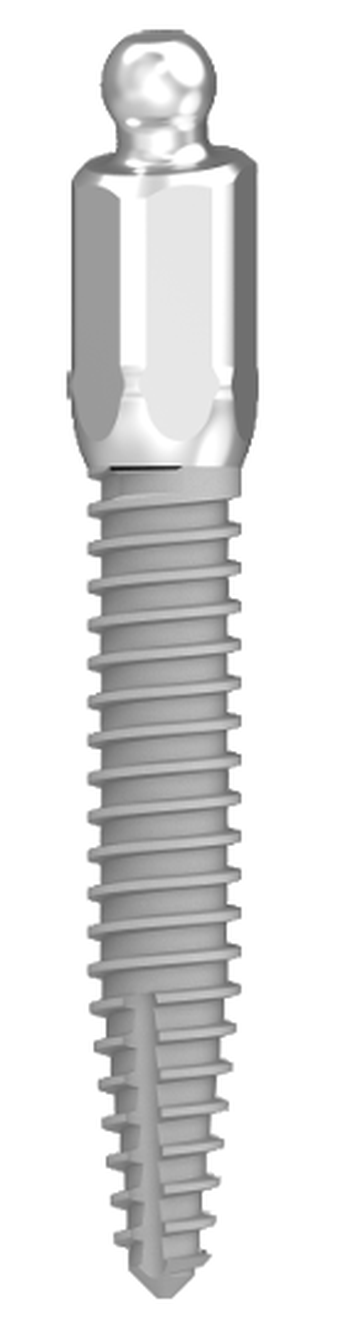

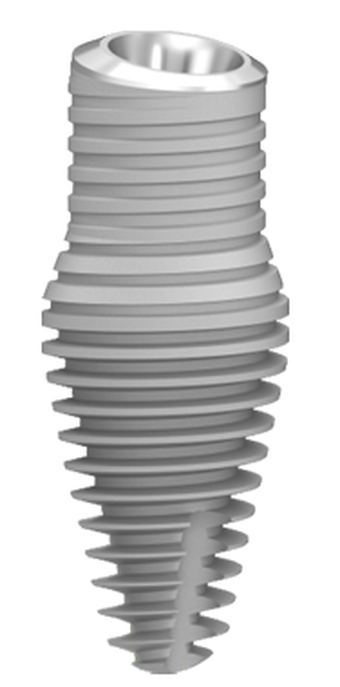

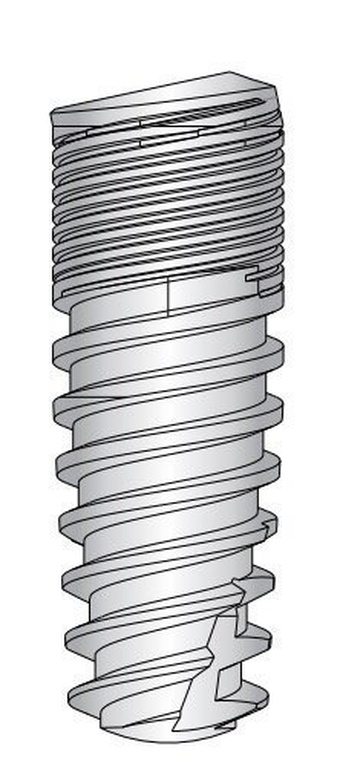

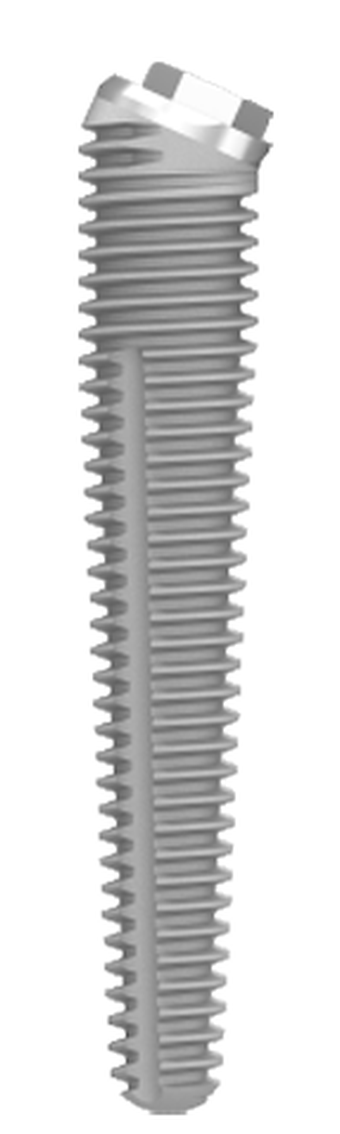

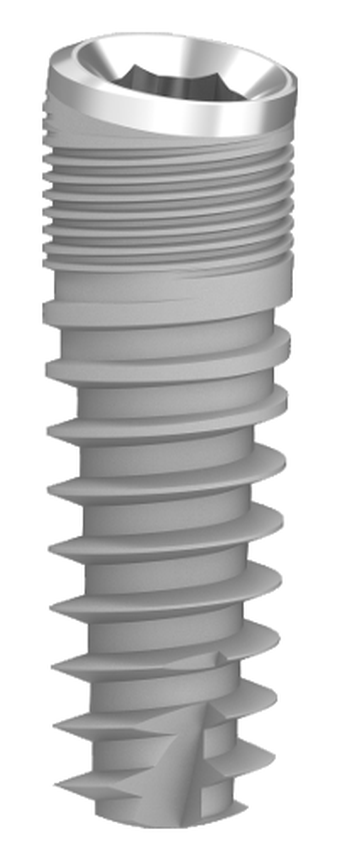

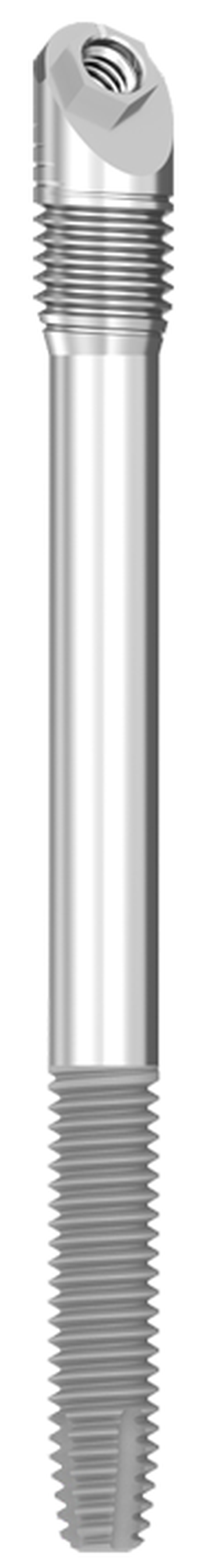

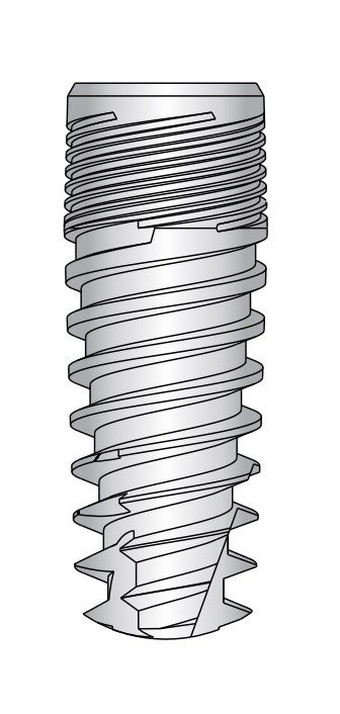

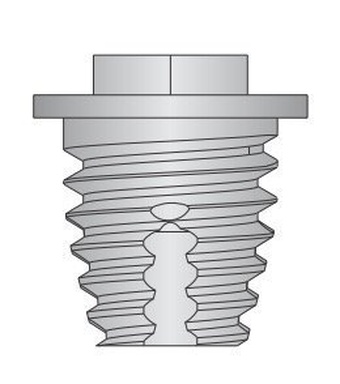

Other Implants
