Tri-Nex Tapered (6.0) By Southern Implants®
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Tri lobe
- Head Shape: Straight
- Head Microthreads: No
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: No
Identify a dental implant
Learn moreConnection
Internal
Tri lobe
Screwdrivers

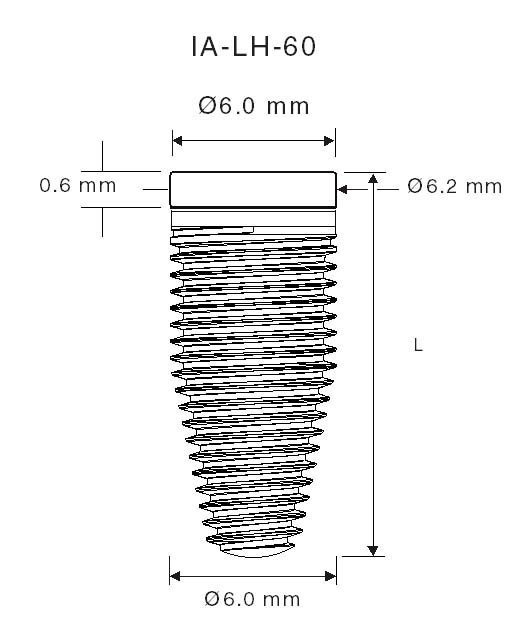

Dimensions
| Length \ Diameter | 6.00mm |
|---|---|
| 3.00mm | HA-L-60-3 |
| 5.00mm | HA-L-60-5 |
| 8.50mm | IA-LH-60-8 |
| 10.50mm | IA-LH-60-10 |
| 12.00mm | IA-LH-60-11.5 |
| 13.50mm | IA-LH-60-13 |
| 16.50mm | IA-LH-60-16 |
Compatible Components
Components compatible with Southern Implants® Tri-Nex Tapered (6.0)®
Description
Tri-Nex Tapered (6.0) is a standard dental implant produced by Southern Implants. Its connection is internal, with a tri lobe shape with none. It's a bone level implant. Its body is tapered apex with v shaped threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and doesn't have grooves. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Southern Implants also offers 55 other implant models.
Components compatible with Southern Implants® Tri-Nex Tapered (6.0)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
