BLX Wide Base By Straumann®

Technical Features

Material: Titanium Alloy
Level: Bone Level
Connection Type: Internal
Connection Shape: Six lobe
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

Internal Six lobe

Screwdriver

Dimensions

Length \ Diameter	5.00mm	5.50mm	6.50mm
6.00mm	061.7306	061.8306	061.9306
8.00mm	061.7308	061.8308	061.9308
10.00mm	061.7310	061.8310	061.9310
12.00mm	061.7312	061.8312
14.00mm	061.7314
16.00mm	061.7316
18.00mm	061.7318

Compatible Components

Components compatible with Straumann® BLX Wide Base®

Browse compatible components

Description

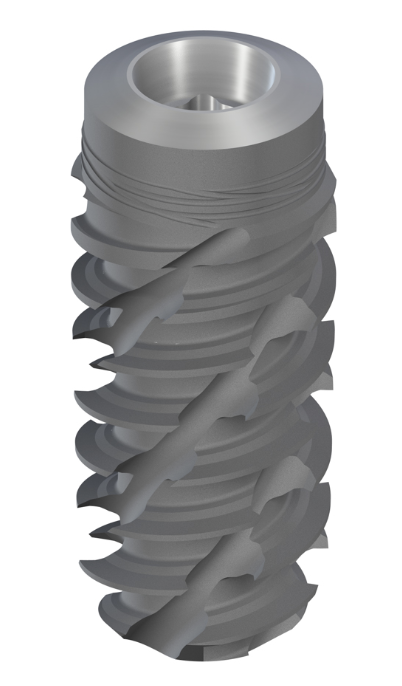

BLX Wide Base is a standard dental implant produced by Straumann. Its connection is internal, with a six lobe shape with morse taper. It's a bone level implant. Its body is tapered with v shaped threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of titanium alloy. It is available in 3 different diameters and 7 different lengths. This implant model is fairly recent. It requires a screwdriver of six-point star shape. For more details, please refer to the catalog. Straumann also offers 29 other implant models.

Components compatible with Straumann® BLX Wide Base®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
