Endopore Hybrid External Hex By Sybron [Innova]®

Description

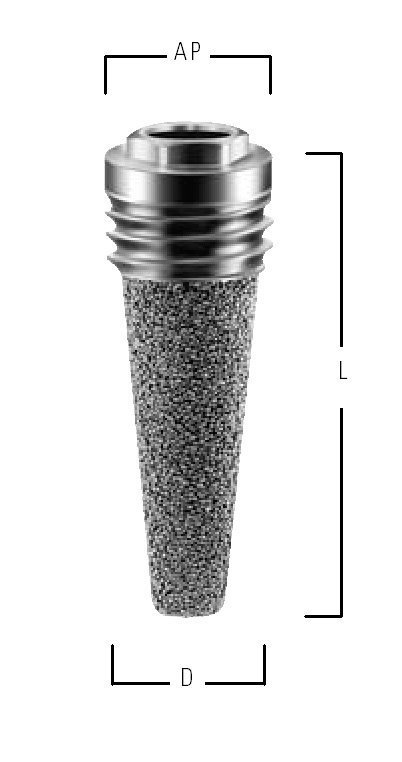

Endopore Hybrid External Hex is a standard dental implant produced by Sybron [Innova]. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its body is tapered with v shaped threads. Its head is straight and has microthreads. Its apex has a flat shape, doesn't have a hole, and doesn't have grooves. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Sybron [Innova] also offers 11 other implant models.
Specs:
AP Implant Abutment Length Cat# Diameter Platform 4.0 mm 4.1 mm 9.5 mm 01B-9.5HYB 4.0 mm 4.1 mm 11 mm 01B-11HYB 4.75 mm 5.0 mm 7.5 mm 01WB-7.5HYB 4.75 mm 5.0 mm 9.5 mm 01WB-9.5HYB The Endopore* Hybrid External Hex Connection implants are available in two diameters: 4.0 mm and 4.75 mm. The implants are packaged with color coded labels that identify D their diameters. These implants have a 0.9 mm smooth coronal region. A low profile cover screw is packaged with each implant.

Components compatible with Sybron [Innova]® Endopore Hybrid External Hex®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
