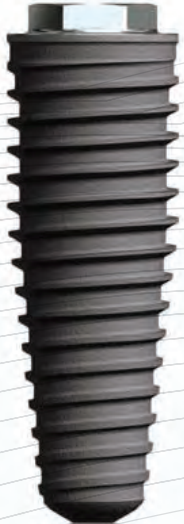

Anatomic CE By Tree-Oss®
Technical Features
- Level: Bone Level
- Connection Type: External
- Connection Shape: Hexagon
- Head Shape: Straight
- Head Microthreads: No
- Body Shape: Tapered Apex
- Body Threads: Buttress
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: No
Identify a dental implant
Learn moreScrewdrivers
Dimensions
| Length \ Diameter | 3.50mm | 4.30mm | 5.00mm |
|---|---|---|---|
| 8.00mm | ✔(P:3.50mm) | ✔(P:4.10mm) | ✔(P:5.10mm) |
| 10.00mm | ✔(P:3.50mm) | ✔(P:4.10mm) | ✔(P:5.10mm) |
| 13.00mm | ✔(P:3.50mm) | ✔(P:4.10mm) | ✔(P:5.10mm) |
| 16.00mm | ✔(P:3.50mm) | ✔(P:4.10mm) | ✔(P:5.10mm) |
Compatible Components
Components compatible with Tree-Oss® Anatomic CE®
Description
Anatomic CE is a standard dental implant produced by Tree-Oss. Its connection is external, with a hexagon shape with none. It's a bone level implant. Its body is tapered apex with buttress threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and doesn't have grooves. It is available in 3 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Tree-Oss also offers 7 other implant models.
Specs:
Diámetro Ápice Plataforma Hexágono Largo 3,5 2,2 3,5 8 2,7 4,1 CE 10 4,3 13 16 5 3,3 5,1
Components compatible with Tree-Oss® Anatomic CE®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
