NT2 By UFIT Implant®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: Reverse Buttress
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Screwdriver

Platforms

mini
regular

Dimensions

Length \ Diameter	3.50mm	4.00mm	4.50mm	5.00mm	5.50mm	6.00mm	6.50mm	7.00mm
7.00mm		NT2 4007T	NT2 4507T	NT2 5007T	NT2 5507T	NT2 6007T	NT2 6507T	NT2 7007T
8.50mm	NT2 35085T	NT2 40085T	NT2 45085T	NT2 50085T	NT2 5585T	NT2 60085T	NT2 65085T	NT2 7085T
10.00mm	NT2 3510T	NT2 4010T	NT2 4510T	NT2 5010T	NT2 5510T	NT2 6010T	NT2 6510T	NT2 7010T
11.50mm	NT2 35115T	NT2 40115T	NT2 45115T	NT2 50115T	NT2 55115T	NT2 60115T	NT2 65115T	NT2 70115T
13.00mm	NT2 3513T	NT2 4013T	NT2 4513T	NT2 5013T	NT2 5513T	NT2 6013T	NT2 6513T	NT2 7013T
15.00mm	NT2 3515T	NT2 4015T	NT2 4515T	NT2 5015T	NT2 5515T	NT2 6015T	NT2 6515T	NT2 7015T

Compatible Components

Components compatible with UFIT Implant® NT2®

Browse compatible components

Description

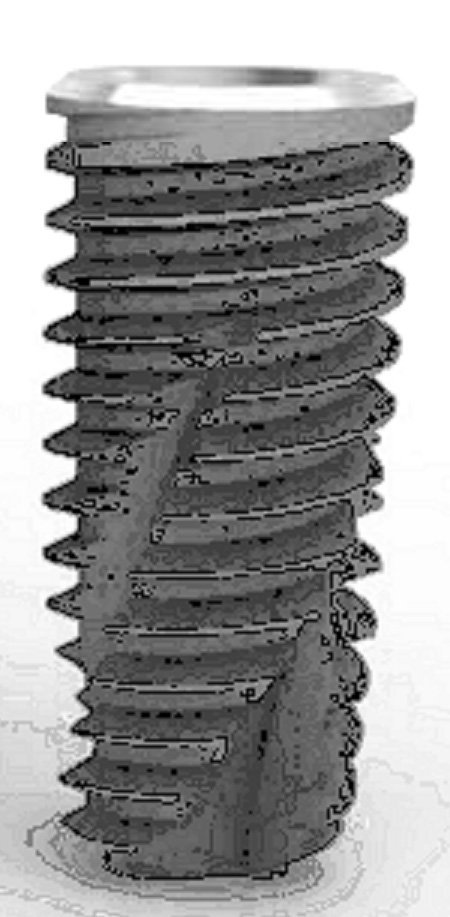

NT2 is a standard dental implant produced by UFIT Implant. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its body is tapered with reverse buttress threads. Its head is straight. Its head has a bevel. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 8 different diameters and 6 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. UFIT Implant also offers 3 other implant models.
Specs:
7 8.5 10 11.5 13 15 Mini Regular Wide Ultra-wide Nt2 in i Length D3.5 m in i R/W /U 8.5 NT2 35085 T 10 NT2 3510 T 11.5 NT2 35115 T O O 13 NT2 3513 T 15 NT2 3515 T 2.1Hex 2.5Hex Nt2 R/W IU Length D4.0 D4.5 D5.0 7 NT2 4007 T NT2 4507 T NT2 5007 T 8.5 NT2 40085 T NT2 45085 T NT2 50085 T 10 NT2 4010 T NT2 4510 T NT2 5010 T 11.5 NT2 40115 T NT2 45115 T NT2 50115 T 13 NT2 4013 T NT2 4513 T NT2 5013 T 15 NT2 4015 T NT2 4515 T NT2 5015 T Length D5.5 D6.0 . D6.5 D 7.0 7 NT2 5507 T NT2 6007 T NT2 6507 T NT2 7007 T 8.5 NT2 55085 T NT2 60085 T NT2 65085 T NT2 70085 T 10 NT2 5510 T NT2 6010 T NT2 6510 T NT2 7010 T 11.5 NT2 55115 T NT2 60115 T NT2 65115 T NT2 70115 T 13 NT2 5513 T NT2 6013 T NT2 6513 T NT2 7013 T 15 NT2 5515 T NT2 6015 T NT2 6515 T NT2 7015 T

Components compatible with UFIT Implant® NT2®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
