Technical Features

Identify a dental implant

Learn more

Platforms

  • NP Narrow 3.3mm
  • RP Regular 4.1mm
  • WP Wide 5mm
Platform specifications and compatibilities

Dimensions

Length \ Diameter 3.30mm 3.75mm 4.25mm 5.00mm
8.50mm OEX3085(P:4.10mm) OEX4085(P:4.10mm) OEX5085(P:5.00mm)
10.00mm OEX2100(P:3.30mm) OEX3100(P:4.10mm) OEX4100(P:4.10mm) OEX5100(P:5.00mm)
11.50mm OEX2115(P:3.30mm) OEX3115(P:4.10mm) OEX4115(P:4.10mm) OEX5115(P:5.00mm)
13.00mm OEX2130(P:3.30mm) OEX3130(P:4.10mm) OEX4130(P:4.10mm) OEX5130(P:5.00mm)
14.50mm OEX2145(P:3.30mm) OEX3145(P:4.10mm) OEX4145(P:4.10mm)

Compatible Components

Components compatible with Ziacom / Osseolife® OEX®

Browse compatible components

Description

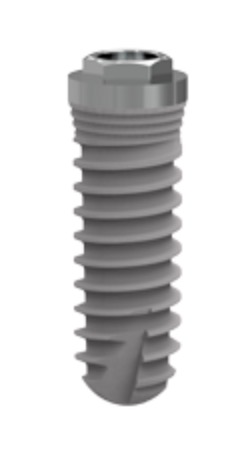

OEX is a standard dental implant produced by Ziacom / Osseolife. Its connection is external, with a hexagon shape with none. It's a bone level implant. Its head is flared and has microthreads. Its body is straight with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths.It is available in 3 different platforms. For more details, please refer to the catalog. Ziacom / Osseolife also offers 23 other implant models.

Components compatible with Ziacom / Osseolife® OEX®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
