OEX MT By Ziacom / Osseolife®
Technical Features
Identify a dental implant
Learn morePlatforms
- NP Narrow 3.3mm
- RP Regular 4.1mm
- WP Wide 5mm
Dimensions
| Length \ Diameter | 3.30mm | 3.75mm | 4.25mm | 5.00mm |
|---|---|---|---|---|
| 8.50mm | OEXMT3085(P:4.10mm) | OEXMT4085(P:4.10mm) | OEXMT5085(P:5.00mm) | |
| 10.00mm | OEXMT2100(P:3.30mm) | OEXMT3100(P:4.10mm) | OEXMT5100(P:5.00mm) | |
| 11.50mm | OEXMT2115(P:3.30mm) | OEXMT3115(P:4.10mm) | OEXMT4100(P:4.10mm) | OEXMT5115(P:5.00mm) |
| 13.00mm | OEXMT2130(P:3.30mm) | OEXMT3130(P:4.10mm) | OEXMT4115(P:4.10mm) | OEXMT5130(P:5.00mm) |
| 14.50mm | OEXMT2145(P:3.30mm) | OEXMT3145(P:4.10mm) | OEXMT4145(P:4.10mm) |
Compatible Components
Components compatible with Ziacom / Osseolife® OEX MT®
Description

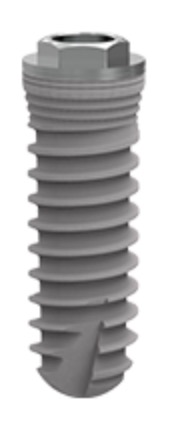

OEX MT is a standard dental implant produced by Ziacom / Osseolife. Its connection is external with none. It's a bone level implant. Its body is straight with v shaped threads. Its head is flared and has microthreads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths.It is available in 3 different platforms. This implant model is fairly recent. For more details, please refer to the catalog. Ziacom / Osseolife also offers 23 other implant models.
Components compatible with Ziacom / Osseolife® OEX MT®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
