OST By Ziacom / Osseolife®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Straight
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

Identify a dental implant

Dimensions

Length \ Diameter	4.75mm	5.25mm	5.75mm
5.50mm	EXMIN47505PF(P:4.00mm)	EXMIN52505PF(P:4.00mm)	EXMIN57505PF(P:4.00mm)
6.50mm	EXMIN47506PF(P:4.00mm)	✔ ✔ ✔ ✔ EXMIN52506PF(P:4.00mm)	EXMIN57506PF(P:4.00mm)
7.50mm	EXMIN47507PF(P:4.00mm)	EXMIN52507PF(P:4.00mm)	EXMIN57507PF(P:4.00mm)
8.50mm	EXMIN47508PF*(P:4.00mm)	EXMIN52508PF*(P:4.00mm)	EXMIN57508PF*(P:4.00mm)

Description

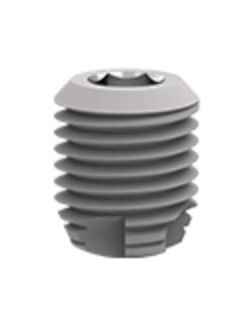

OST is a short dental implant produced by Ziacom / Osseolife. Its connection is internal, with a hexagon shape with internal bevel. It's a bone level implant. Its body is straight with v shaped threads. Its head is straight. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 4 different lengths. We don't have a catalog available for this model. Ziacom / Osseolife also offers 23 other implant models.
Specs:
0 4,75 mm M2,00 mm 0 4,00 mm SERIE Referencia Diámetro Ø Longitud (H) OST EXMIN47505PF 4,75 mm 5,50 mm EX EX EXMIN47506PF 4,75 mm 6,50 mm RP 4,00 mm H 2,41 mm DIÁMETRO EXMIN47507PF 4,75 mm 7,50 mm RP PLATAFORMA EXMIN47508PF* 1,80 mm 4,75 mm 8,50 mm 0 4,00 mm 0 5,25 mm M2,00 mm 0 4,00 mm SERIE Referencia Diametro 0 Longitud (H) OST E EXMIN52505PF 5,25 mm 5,50 mm EX EX EXMIN52506PF 5,25 mm 6,50 mm RP 4,00mm H 2,41 mm DIÁMETRO EXMIN52507PF 5,25 mm 7,50 mm RP PLATAFORMA EXMIN52508PF* 5,25 mm 1,80 me 8,50 mm 0 4,00 mm 0 5,75 mm M2,00 mm 04,00mm SERIE Referencia Diámetro 0 Longitud (H) OST R EXMIN57505PF 5,75 mm 5,50 mm EX EXMIN57506PF 5,75 mm 6,50 mm EX 4,00 mm RP H 2,41mm EXMIN57507PF 5,75 mm 7,50 mm DIÁMETRO RP PLATAFORMA EXMIN57508PF* 5,75 mm 8,50 mm 1,80 mm 0 4,00 mm * Estos implantes pueden no estar disponibles en todas las zonas de distribución.
