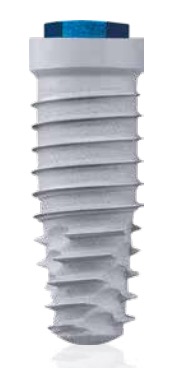

Zimmer-Biomet T3 Ex Hex Tapered main image

T3 Ex Hex Tapered By Zimmer-Biomet®

Technical Features

Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Wide
Head Microthreads: No
Body Shape: Tapered Apex
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

Order Compatible Components Contact us

Identify a dental implant

Learn more

Screwdriver

Dimensions

Length \ Diameter	3.25mm	4.00mm	5.00mm	6.00mm
8.50mm	BOET3285 BNET3285	BOET485 BNET485	BNET585 BOET585	BOET685 BNET685
10.00mm	BOET3210 BNET3210	BNET410 BOET410	BNET510 BOET510	BNET610 BOET610
11.50mm	BNET3211 BOET3211	BOET411 BNET411	BNET511 BOET511	BOET611 BNET611
13.00mm	BOET3213 BNET3213	BOET413 BNET413	BNET513 BOET513	BOET613 BNET613
15.00mm	BNET3215 BOET3215	BOET415 BNET415	BOET515	BNET615 BOET615

Compatible Components

Components compatible with Zimmer-Biomet® T3 Ex Hex Tapered®

Browse compatible components

Description

T3 Ex Hex Tapered is a standard dental implant produced by Zimmer-Biomet. Its connection is external, with a hexagon shape with none. It's a bone level implant. Its body is tapered apex with v shaped threads. Its head is wide. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths. This implant model is fairly recent. It requires a screwdriver of hexagon shape. We don't have a catalog available for this model. Zimmer-Biomet also offers 13 other implant models.

Components compatible with Zimmer-Biomet® T3 Ex Hex Tapered®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
