N Standard By Drive Implants®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Screwdriver

Dimensions

Length \ Diameter	3.40mm	4.00mm	5.00mm
7.00mm		KIT DNG 4/7	KIT DNG 5/7
8.00mm	KIT DNG 3.4/8	KIT DNG 4/8	KIT DNG 5/8
10.00mm	KIT DNG 3.4/10	KIT DNG 4/10	KIT DNG 5/10
12.00mm	KIT DNG 3.4/12	KIT DNG 4/12	KIT DNG 5/12
14.00mm	KIT DNG 3.4/14	KIT DNG 4/14

Compatible Components

Components compatible with Drive Implants® N Standard®

Browse compatible components

Description

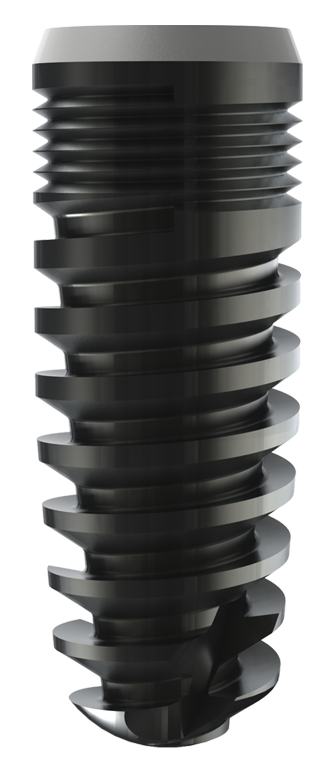

N Standard is a standard dental implant produced by Drive Implants. Its connection is internal, with a hexagon shape with internal bevel. It's a bone level implant. Its body is tapered with buttress threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 5 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Drive Implants also offers 4 other implant models.

Components compatible with Drive Implants® N Standard®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
