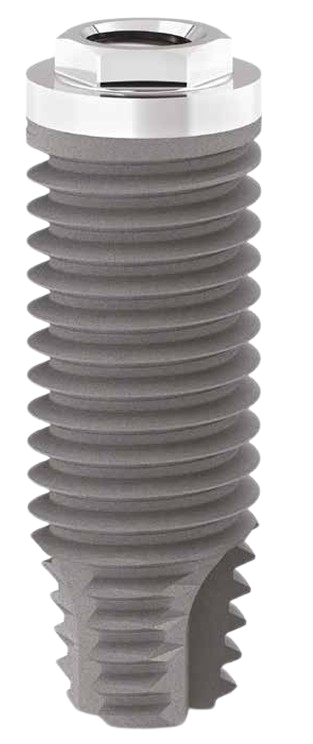

Outlink2 By Sweden & Martina®

Technical Features

Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Wide
Head Microthreads: No
Body Shape: Tapered Apex
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Screwdriver

Platforms

default
default
default

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.00mm	3.30mm	3.75mm	4.10mm	5.00mm
5.00mm				E2-ZT-410SP-050(P:4.10mm)	E2-ZT-500-050(P:5.00mm)
7.00mm				E2-ZT-410SP-070(P:4.10mm)	E2-ZT-500-070(P:5.00mm)
8.50mm	EB-ZT-300-085(P:3.00mm)			E2-ZT-375-085(P:3.75mm) E2-ZT-410-085(P:4.10mm) E2-ZT-410SP-085(P:4.10mm)	E2-ZT-500-085(P:5.00mm)
10.00mm	EB-ZT-300-100(P:3.00mm)	E2-ZT-330-100(P:3.30mm)		E2-ZT-375-100(P:3.75mm) E2-ZT-410SP-100(P:4.10mm) E2-ZT-410-100(P:4.10mm)	E2-ZT-500-100(P:5.00mm)
11.50mm	EB-ZT-300-115(P:3.00mm)	E2-ZT-330-115(P:3.30mm)		E2-ZT-375-115(P:3.75mm) E2-ZT-410SP-115(P:4.10mm) E2-ZT-410-115(P:4.10mm)	E2-ZT-500-115(P:5.00mm)
13.00mm	EB-ZT-300-130(P:3.00mm)	E2-ZT-330-130(P:3.30mm)	✔	E2-ZT-410SP-130(P:4.10mm) E2-ZT-410-130(P:4.10mm) E2-ZT-375-130(P:3.75mm)	E2-ZT-500-130(P:5.00mm)
15.00mm		E2-ZT-330-150(P:3.30mm)		E2-ZT-375-150(P:3.75mm) E2-ZT-410-150(P:4.10mm) E2-ZT-410SP-150(P:4.10mm)
18.00mm				E2-ZT-410-180(P:4.10mm)

Compatible Components

Components compatible with Sweden & Martina® Outlink2®

Browse compatible components

Description

Outlink2 is a standard dental implant produced by Sweden & Martina. Its connection is external, with a hexagon shape with none. It's a bone level implant. Its head is wide. Its body is tapered apex with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 5 different diameters and 8 different lengths.It is available in 3 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Sweden & Martina also offers 45 other implant models.

Components compatible with Sweden & Martina® Outlink2®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
