TRI-SHORE By Avenir®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Tri lobe
Head Shape: Straight
Head Microthreads: No
Body Shape: Straight
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

Manufacturer Page

Identify a dental implant

Learn more

Dimensions

Length \ Diameter	3.30mm	4.00mm	4.50mm	5.00mm
7.00mm	MGIPC3307(P:3.50mm)	MGIPC4007(P:4.00mm)
8.50mm	MGIPC3308(P:3.50mm)	MGIPC4008(P:4.00mm)	MGIPC4508(P:4.00mm)	MGIPC5008(P:4.00mm)
10.00mm	MGIPC3310(P:3.50mm)	MGIPC4010(P:4.00mm)	MGIPC4510(P:4.00mm)	MGIPC5010(P:4.00mm)
11.50mm	MGIPC3311(P:3.50mm)	MGIPC4011(P:4.00mm)	MGIPC4511(P:4.00mm)	MGIPC5011(P:4.00mm)
13.00mm	MGIPC3313(P:3.50mm)	MGIPC4013(P:4.00mm)	MGIPC4513(P:4.00mm)	MGIPC5013(P:4.00mm)

Description

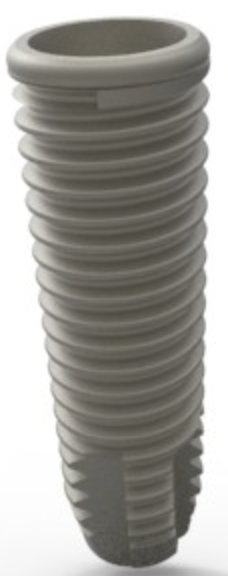

TRI-SHORE is a standard dental implant produced by Avenir. Its connection is internal, with a tri lobe shape with morse taper. It's a bone level implant. Its body is straight with v shaped threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths. We don't have a catalog available for this model. Avenir also offers 9 other implant models.
Specs:
CODICE DIAMETRO LUNGHEZZA MGIPC3307 7,0 MGIPC3308 8,5 MGIPC3310 3,30 10,0 3 MGIPC3311 11,5 MGIPC3313 13,0 MGIPC4007 7,0 MGIPC4008 8,5 MGIPC4010 4,00 10,0 MGIPC4011 11,5 MGIPC4013 13,0 MGIPC4007 7,0 MGIPC4508 8,5 MGIPC4510 4,50 10,0 MGIPC4511 11,5 MGIPC4513 13,0 MGIPC4007 7,0 MGIPC5008 8,5 MGIPC5010 5,00 10,0 MGIPC5011 11,5 MGIPC5013 13,0
