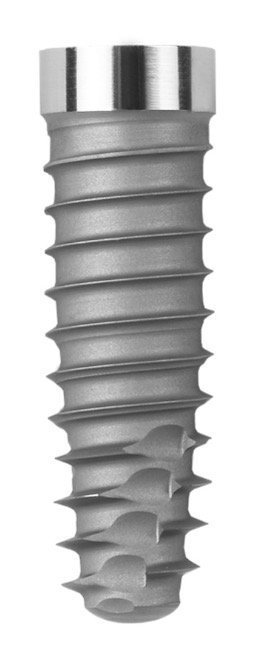

Tapered Certain By Biomet 3i®

Technical Features

Material: Titanium Alloy
Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Wide
Head Microthreads: No
Body Shape: Tapered Apex
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

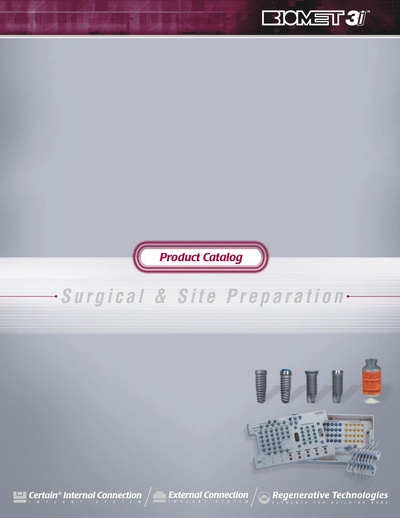

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdrivers

Platforms

3.4mm
3.4mm
4.1mm
4.1mm
5mm
5mm
6mm
6mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.25mm	4.00mm	5.00mm	6.00mm
8.50mm	NINT3285(P:3.40mm) INT3285(P:3.40mm)	INT485(P:4.10mm) NINT485(P:4.10mm)	INT585(P:5.00mm) INT558 NINT585(P:5.00mm)	INT685
10.00mm	NINT3210(P:3.40mm) INT3210(P:3.40mm)	NINT410(P:4.10mm) INT410(P:4.10mm)	INT510(P:5.00mm) NINT510(P:5.00mm)	INT610
11.50mm	INT3211(P:3.40mm) INT3211(P:3.40mm) NINT3211(P:3.40mm)	INT411(P:4.10mm) INT411(P:4.10mm) NINT411(P:4.10mm)	INT511(P:5.00mm) INT511(P:5.00mm) NINT511(P:5.00mm)	INT611(P:6.00mm)
13.00mm	NINT3213(P:3.40mm) INT3213(P:3.40mm)	INT413(P:4.10mm) NINT413(P:4.10mm)	INT513(P:5.00mm) NINT513(P:5.00mm)	INT613
15.00mm	INT3215(P:3.40mm) NINT3215(P:3.40mm)	INT415(P:4.10mm) NINT415(P:4.10mm)	NINT515(P:5.00mm) INT515(P:5.00mm)	INT615

Compatible Components

Components compatible with Biomet 3i® Tapered Certain®

Browse compatible components

Description

Tapered Certain is a standard dental implant produced by Biomet 3i. It's a bone level implant. Its connection is internal, with a hexagon shape with none. Its body is tapered apex with v shaped threads. Its head is wide. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of titanium alloy. It is available in 4 different diameters and 5 different lengths.It is available in 8 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Biomet 3i also offers 24 other implant models.
Specs:
OSSEOTITE® Tapered Certain Implants -3.41 -4.14 F 5.0 - 6.0 1.25: 1.25: 1.25 U 1.25: Hybrid OSSEOTITE Surface 11.91 1241 13.21 -3.9-| Length 3.25mm (D) 4. Omm (D) 5. .Omm (D) 6. Omm (D) 8.5mm INT3285 INT485 INT585 INT685 10.0mm INT3210 INT410 INT510 INT610 11.5mm INT3211 INT411 INT511 INT611 13.0mm INT3213 INT413 INT513 INT613 15.0mm INT3215 INT415 INT515 INT615

Components compatible with Biomet 3i® Tapered Certain®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
