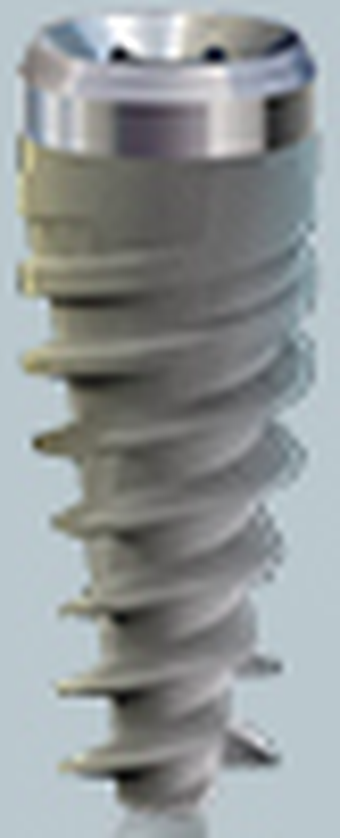

Dynamic By Paltop®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: Reverse Buttress
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdriver

Dimensions

Length \ Diameter	3.25mm	3.75mm	4.20mm	5.00mm
6.00mm			21-70005	21-70011
7.80mm		21-70017	21-70006	21-70012
9.80mm	21-70018	21-70001	21-70007	21-70013
11.30mm	21-70019	21-70002	21-70008	21-70014
12.80mm	21-70020	21-70003	21-70009	21-70015
15.80mm	21-70021	21-70004	21-70010	21-70016

Compatible Components

Components compatible with Paltop® Dynamic®

Browse compatible components

Description

Dynamic is a standard dental implant produced by Paltop. It's a bone level implant. Its connection is internal, with a hexagon shape with internal bevel. Its body is tapered with reverse buttress threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 6 different lengths. This implant model is fairly recent. It requires a screwdriver of hexagon shape. We don't have a catalog available for this model. Paltop also offers 9 other implant models.

Components compatible with Paltop® Dynamic®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.

Suggest an Improvement
