IPXE By Galimplant®

Technical Features

Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Straight
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

External Hexagon

Dimensions

Length \ Diameter	3.50mm	4.00mm	5.00mm
6.00mm		IPXE 4006(P:4.00mm)	IPXE 5006(P:5.00mm)
8.00mm	IPXE 3508(P:4.00mm)	IPXE 4008(P:4.00mm)	IPXE 5008(P:5.00mm)
10.00mm	IPXE 3510(P:4.00mm)	IPXE 4010(P:4.00mm)	IPXE 5010(P:5.00mm)
12.00mm	IPXE 3512(P:4.00mm)	IPXE 4012(P:4.00mm)	IPXE 5012(P:5.00mm)
14.00mm	IPXE 3514(P:4.00mm)	IPXE 4014(P:4.00mm)

Compatible Components

Components compatible with Galimplant® IPXE®

Browse compatible components

Description

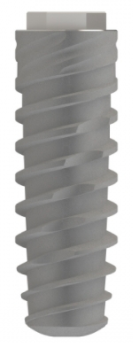

IPXE is a standard dental implant produced by Galimplant. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its body is straight with v shaped threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 5 different lengths. For more details, please refer to the catalog. Galimplant also offers 9 other implant models.

Components compatible with Galimplant® IPXE®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
